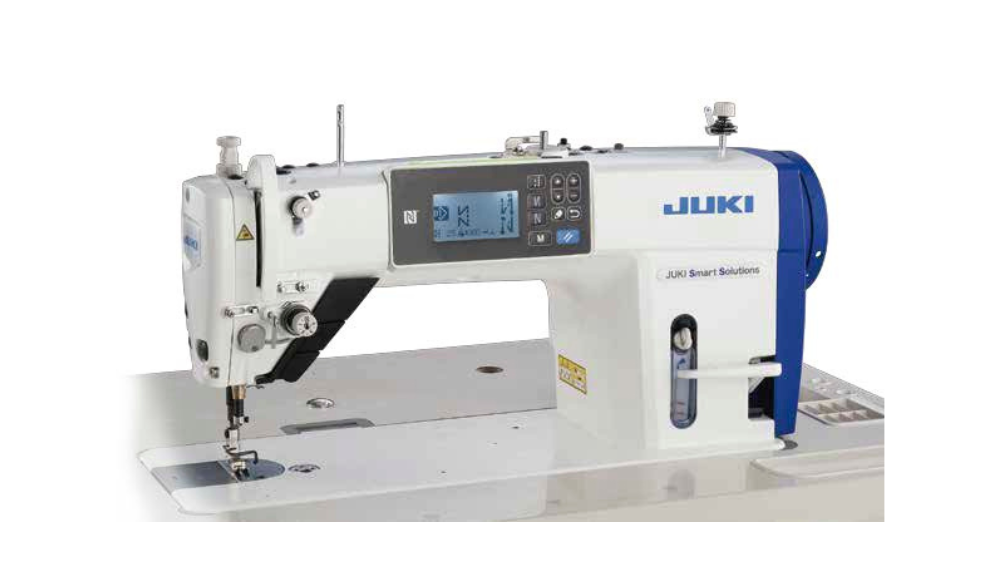

Sewing machine Juki DDL-9000C

The JUKI DDL-9000C ushers in a new era of industrial sewing machine technology. Featuring a state-of-the-art sewing system and smart functionalities, this machine can boost productivity and accuracy in any manufacturing setting.

The sewing machine features a high-efficiency energy-saving servo motor with direct drive, eliminating energy losses. The operation panel and control box are integrated into the machine head, and a USB port is available under the panel. The JUKI DDL-9000C excels at sewing various materials, from medium-light to denim.

The DDL-9000C's strength lies in its innovative electronic transport system. This system, thanks to digital control of movement geometry, adapts perfectly to any type of material, guaranteeing excellent performance and versatility in every situation. Adjustments are made via the intuitive keypad, while the vertical movement of the gripper during thread trimming minimizes the length of the remaining thread.

The rotary thread trimmer with a double blade precisely cuts the thread just below the needle hole, ensuring a thread remnant of only 3 mm.

The sewing machine is equipped with "IoT" (Internet of Things) connectivity, enabling the transfer of sewing data to a tablet via the JUKI Smart APP, facilitating remote monitoring and production management.

• Enhanced Productivity with Unmatched Speed and Precision

• Experience exceptional stitching quality across all material types

• Minimize thread waste and maximize efficiency

• Streamline production monitoring and management

• Electronic feed system with vertical and horizontal movement

• Rotary thread trimmer with 3mm cut

• IoT connectivity with JUKI Smart APP

• 4.3'' color touchscreen LCD display

• Tablet holder and USB port

• Digital adjustment of presser foot pressure and thread tension

• Integrated LED lamp

• Semi-dry lubrication system

• Sewing speed up to 5,000 stitches/min

  Maximum stitch length 5 mm

• Presser foot lift 5.5 mm (manual) or 15 mm (knee lever)

• Integrated thread bobbin winder

• 450W compact AC servo motor

• Automatic feed reverse function

The JUKI DDL-9000C is the ideal choice for textile companies seeking to optimize their production processes and achieve the highest quality results.
