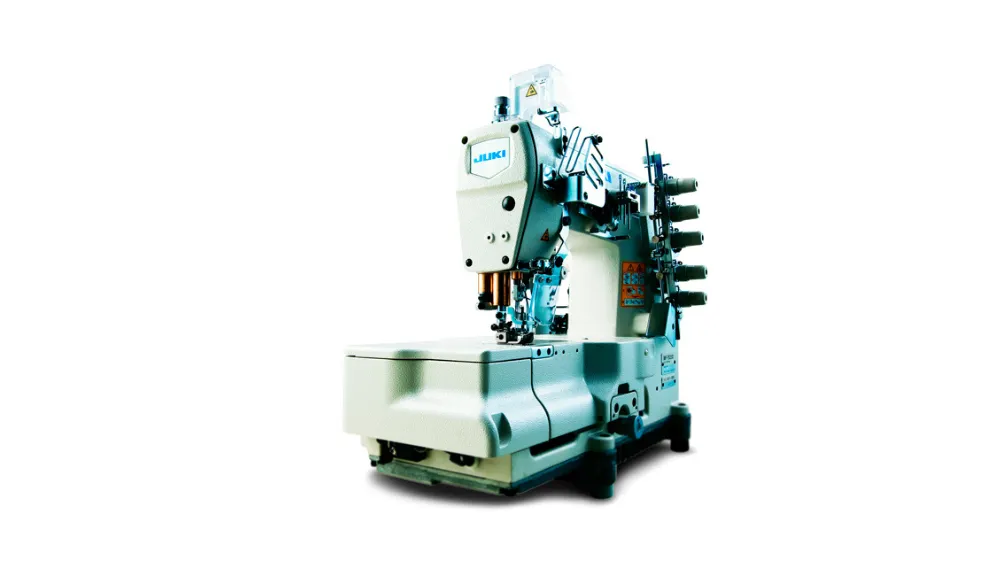

Juki MF 7523 Sewing Machine

The Juki MF-7523 sewing machine is a flatbed machine ideal for 1, 2, or 3-needle stitching with semi-dry lower and upper coverstitching - oil-free needle bar.

This type of machine allows you to sew even the finest materials and achieve exceptional stitch precision

Equipped with an upper and lower thread trimmer and an electromagnetic foot lifter UT35, the machine can be mounted semi-submerged or raised as with most machines. In addition, it is possible to mount either an electronic or traditional motor.

• Stitch Type: 2-needle/3-needle/4-needle upper and lower coverstitch

• Needle Spacing: 5.6mm

• Speed: Up to 5,000 stitches per minute (SPM)

• Needle: UY128GAS (#10S) #9S~#12Si

• Presser Foot Lift: 5mm (with upper and lower coverstitch), 8mm (with lower coverstitch)

• Stitch Length Adjustment: Via dial

• Differential Feed Adjustment: Via micro-adjustment mechanism

• Lubrication: Automatic

• Power Requirements: Single phase 100~120 V / 200~240 V, Three phase 200~240 V (with automatic thread trimmer)

• Power Consumption: 500VA (with automatic thread trimmer)

This newly designed coverstitch machine delivers exceptional stitching quality. Its advanced sewing mechanisms, including the new feed system, differential feed, and micro-adjustment mechanism, contribute to superior stitch performance. The Juki MF 7523 also features a standard hook thread entanglement prevention mechanism for improved maintenance.

Contact us for a quote

Download the Juki MF-7523 leaflet
